LIGHT RECEIVING CHIPLead freeRoHS Standard

● LIGHT RECEIVING CHIP (Photodiode)
Light receiving chip (Photodiode) is generally light-receiving devices that utilize the photoelectric effect. They have the following characteristics:
Due to their planar structure, their diode characteristics (curve factor) are good and they have excellent dynamic characteristics when a load is applied.
・Good linearity of photoelectric current from low to high illuminance.
・Little variation in the light output between the devices in the same assembly.
・Fast response time.
・Wide spectral sensitivity.

filter the search

Sensitivity
Terminal capacitance
(Typ.)

pF　～

pF

 Peak sensitivity wavelength
(Typ.)

nm　～

nm

SEARCH

Part No. DATA SHEET Feature Production status
〇： In mass production
△： Need inquiry 		Dark current Dark current Terminal capacitance Spectral sensitivity Spectral sensitivity Sensitivity Peak sensitivity wavelength Chip size Active area
VR=5V VR=5V VR=5V
Max. Typ. Typ. Min. Max. Typ. Typ.

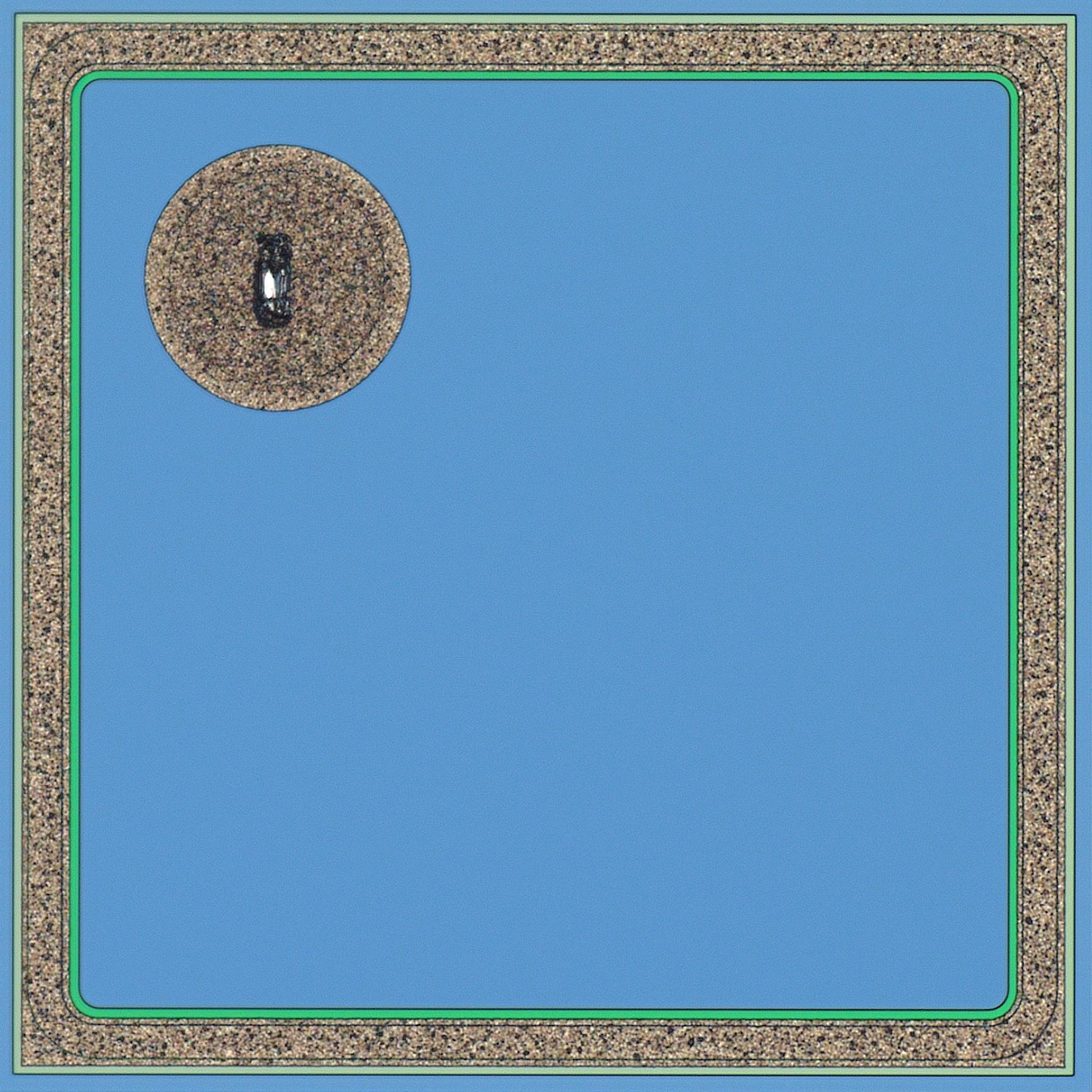

PD-07N 		pdfはこちら product_featurePhotodiode chip
P on N PIN type		 production_status〇 dark_current20 nA dark_current_typ- terminals_content3 pF spectral_sensitivity_min450 nm spectral_sensitivity_max1050 nm sensitivity_txt0.54 A/W（λ=780 nm） peak_wavelength920 nm chip_size0.67 × 0.67 mm active_area0.52 × 0.52 mm

PD-012 		pdfはこちら product_featurePhotodiode chip
P on N PIN type		 production_status〇 dark_current20 nA dark_current_typ- terminals_content5 pF spectral_sensitivity_min450 nm spectral_sensitivity_max1050 nm sensitivity_txt0.54 A/W（λ=780 nm） peak_wavelength920 nm chip_size1.17 × 1.17 mm active_area0.94 × 0.94 mm

PD-02B 		pdfはこちら product_featurePhotodiode chip
N on P		 production_status〇 dark_current3 nA dark_current_typ- terminals_content13 pF spectral_sensitivity_min450 nm spectral_sensitivity_max1050 nm sensitivity_txt0.43 A/W（λ=660 nm） peak_wavelength850 nm chip_size0.67 × 0.67 mm active_area0.54 × 0.54 mm

PD-16B 		pdfはこちら product_featurePhotodiode chip
N on P		 production_status〇 dark_current10 nA dark_current_typ- terminals_content63 pF spectral_sensitivity_min450 nm spectral_sensitivity_max1050 nm sensitivity_txt0.43 A/W（λ=660 nm） peak_wavelength850 nm chip_size1.57 × 1.57 mm active_area1.28 × 1.28 mm

PD-024-S 		pdfはこちら product_feature2 divisions Photodiode chip production_status〇 dark_current20 nA dark_current_typ- terminals_content3.5 pF spectral_sensitivity_min450 nm spectral_sensitivity_max1050 nm sensitivity_txt0.40 A/W（λ=680 nm） peak_wavelength- chip_size3.53 × 1.32 mm active_area(1.585×0.97 mm)×2

PD-636 		pdfはこちら product_featureHigh-sensitivity photodiode
for blue-violet band		 production_status〇 dark_current2 nA dark_current_typ0.05 nA terminals_content18 pF spectral_sensitivity_min350 nm spectral_sensitivity_max950 nm sensitivity_txt0.24 A/W（λ=405 nm） peak_wavelength720 nm chip_size1.37 × 1.37 mm active_area1.14 × 1.14 mm

PD-638 		pdfはこちら product_featureHigh-sensitivity photodiode
for UVC		 production_status△ dark_current2 nA dark_current_typ0.01 nA terminals_content16 pF spectral_sensitivity_min250 nm spectral_sensitivity_max950 nm sensitivity_txt0.16 A/W（λ=255 nm） peak_wavelength750 nm chip_size1.37 × 1.37 mm active_area1.13 × 1.13 mm

PD-639 		pdfはこちら product_featureHigh-sensitivity photodiode
for blue-violet band		 production_status△ dark_current2 nA dark_current_typ0.05 nA terminals_content3.4 pF spectral_sensitivity_min350 nm spectral_sensitivity_max950 nm sensitivity_txt0.24 A/W（λ=405 nm） peak_wavelength720 nm chip_size0.70 × 0.70 mm active_area0.56 × 0.56 mm

PD-642 		pdfはこちら product_featureHigh-sensitivity photodiode
for UVC		 production_status△ dark_current5 nA dark_current_typ0.2 nA terminals_content160 pF spectral_sensitivity_min250 nm spectral_sensitivity_max950 nm sensitivity_txt0.16 A/W（λ=255 nm） peak_wavelength750 nm chip_size3.97 × 3.97 mm active_area3.73 × 3.73 mm

DS3-16 		pdfはこちら product_featurePhotodiode chip
P on N PIN type		 production_status- dark_current- dark_current_typ- terminals_content- spectral_sensitivity_min- spectral_sensitivity_max- sensitivity_txt- peak_wavelength- chip_size- active_area-

DS3-20 		pdfはこちら product_featurePhotodiode chip
P on N PIN type		 production_status- dark_current- dark_current_typ- terminals_content- spectral_sensitivity_min- spectral_sensitivity_max- sensitivity_txt- peak_wavelength- chip_size- active_area-

DD3-30 		pdfはこちら product_featurePhotodiode chip
P on N PIN type		 production_status- dark_current- dark_current_typ- terminals_content- spectral_sensitivity_min- spectral_sensitivity_max- sensitivity_txt- peak_wavelength- chip_size- active_area-
