LIGHT EMITTING ELEMENT鉛フリーRoHS 指令標準

発光素子

条件で絞り込む

許容損失 PD

mW  ~

mW

順電圧 VF(Max.)

V ~

V

順電圧 IF

mA ~

mA

発光出力 Po(Typ.)

mW  ~

mW

発光出力 Po(Typ.)

mW/sr  ~

mW/sr

発光出力 IF

mA  ~

mA

ピーク発光波長
λP(Typ.)

nm ~

nm

絞り込み検索

品番 データシート 量産状態
〇:量産中
△:要問合せ
許容損失 動作温度 順電圧 順電圧 発光出力 発光出力 発光出力 ピーク発光波長 半値角
PD Topr. VF IF Po Po IF λP Δθ
測定条件 測定条件 代表特性
Max. Typ. Typ. Typ. Min.
EL-1CL3
pdfはこちら production_status power_dissipation95 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.5 V forward_voltage_if40 mA po_mw1.8 mW po_mw_sr- po_if40 mA peak_wavelength940 nm ±half_value_angle53 °

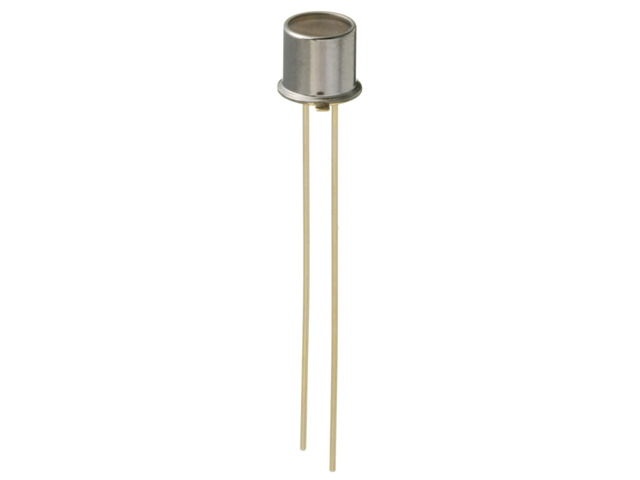

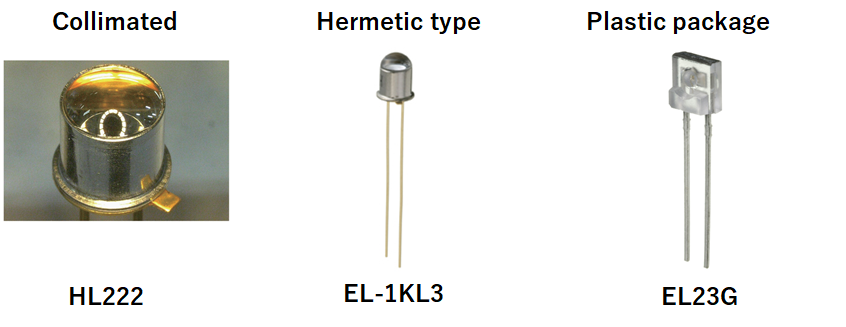

EL-1K3
pdfはこちら production_status power_dissipation170 mW topr_min-40 ~ +topr_max100 ℃ forward_voltage1.7 V forward_voltage_if100 mA po_mw4 mW po_mw_sr- po_if100 mA peak_wavelength940 nm ±half_value_angle36 °

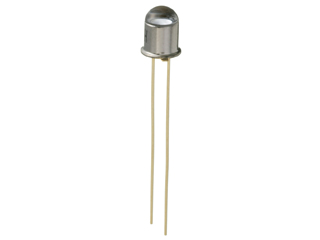

EL-1KL3
pdfはこちら production_status power_dissipation170 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.7 V forward_voltage_if100 mA po_mw7 mW po_mw_sr- po_if100 mA peak_wavelength940 nm ±half_value_angle15 °

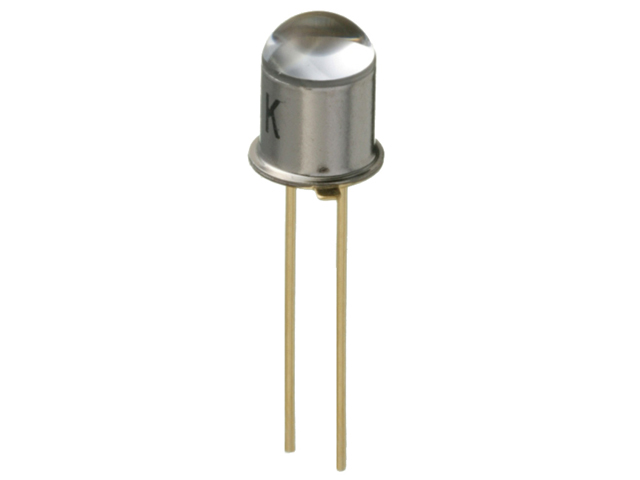

EL-1KL5
pdfはこちら production_status power_dissipation170 mW topr_min-40 ~ +topr_max100 ℃ forward_voltage1.7 V forward_voltage_if100 mA po_mw5 mW po_mw_sr- po_if100 mA peak_wavelength940 nm ±half_value_angle5 °

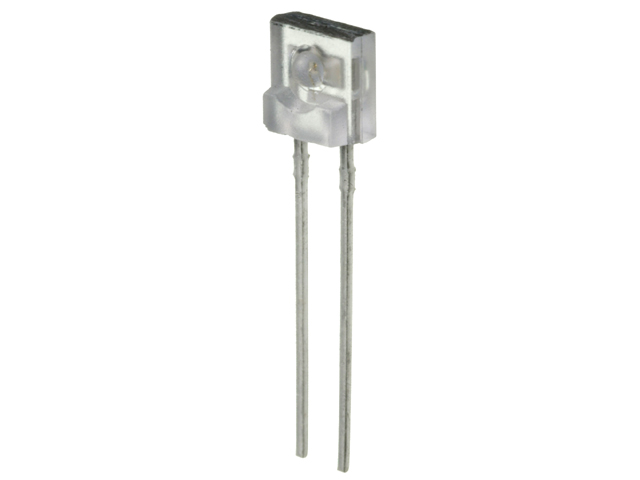

EL23G
pdfはこちら production_status power_dissipation100 mW topr_min-20 ~ +topr_max100 ℃ forward_voltage1.6 V forward_voltage_if60 mA po_mw- po_mw_sr- po_if50 mA peak_wavelength940 nm ±half_value_angle30 °
EL321
pdfはこちら production_status power_dissipation75 mW topr_min-20 ~ +topr_max85 ℃ forward_voltage1.5 V forward_voltage_if20 mA po_mw- po_mw_sr- po_if4 mA peak_wavelength940 nm ±half_value_angle30 °

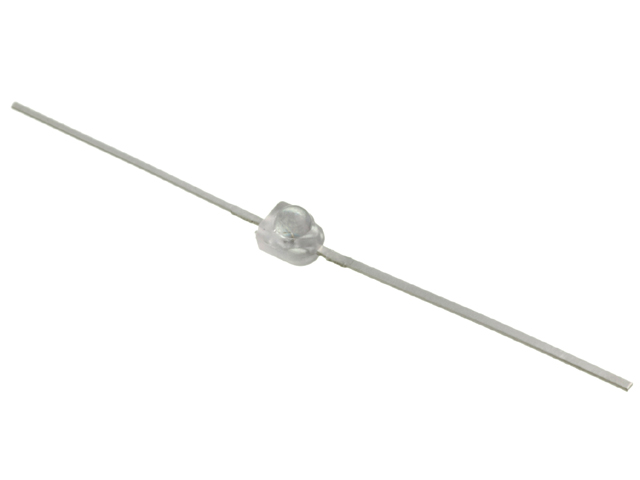

EL333
- production_status power_dissipation75 mW topr_min-25 ~ +topr_max85 ℃ forward_voltage1.5 V forward_voltage_if50 mA po_mw- po_mw_sr- po_if20 mA peak_wavelength940 nm ±half_value_angle20 °
EL333F
pdfはこちら production_status power_dissipation75 mW topr_min-25 ~ +topr_max85 ℃ forward_voltage1.2 V forward_voltage_if50 mA po_mw- po_mw_sr- po_if20 mA peak_wavelength940 nm ±half_value_angle20 °
EL333F1
pdfはこちら production_status power_dissipation75 mW topr_min-25 ~ +topr_max85 ℃ forward_voltage1.2 V forward_voltage_if50 mA po_mw- po_mw_sr- po_if20 mA peak_wavelength940 nm ±half_value_angle20 °

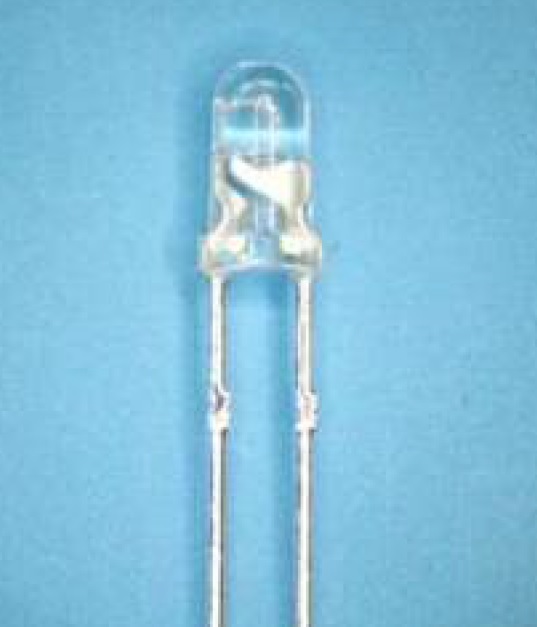

EL341
pdfはこちら production_status power_dissipation75 mW topr_min-25 ~ +topr_max80 ℃ forward_voltage1.5 V forward_voltage_if20 mA po_mw- po_mw_sr25 mW/sr po_if50 mA peak_wavelength940 nm ±half_value_angle14 °

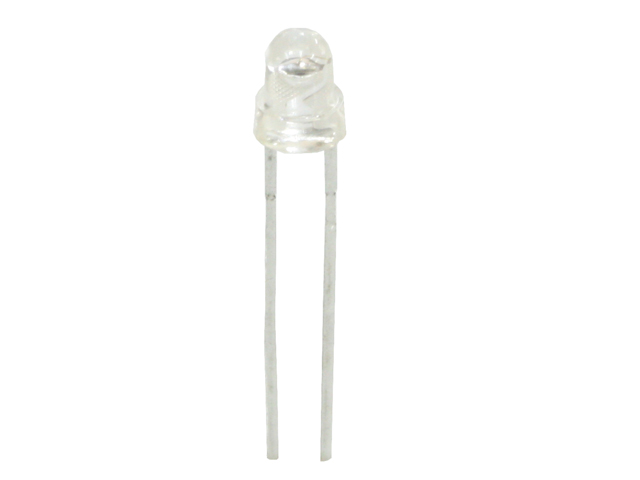

EL342
pdfはこちら production_status power_dissipation75 mW topr_min- ~ +topr_max60 ℃ forward_voltage1.5 V forward_voltage_if20 mA po_mw14 mW po_mw_sr- po_if50 mA peak_wavelength940 nm ±half_value_angle35 °

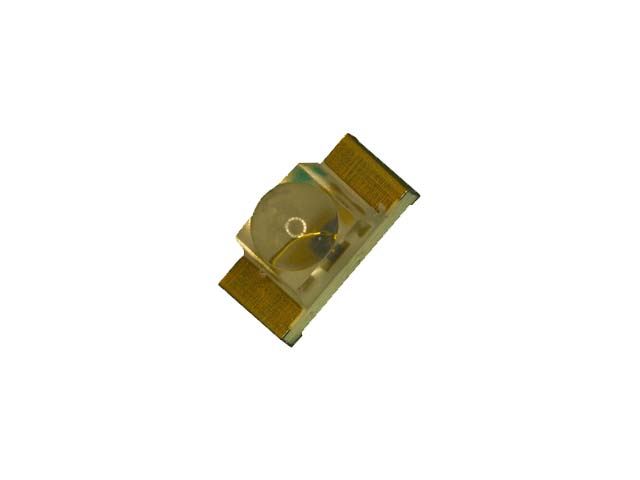

EL615
pdfはこちら production_status power_dissipation60 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw1.9 mW po_mw_sr- po_if20 mA peak_wavelength940 nm ±half_value_angle20 °
CL-1CL3
pdfはこちら production_status power_dissipation95 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.5 V forward_voltage_if40 mA po_mw7 mW po_mw_sr- po_if40 mA peak_wavelength880 nm ±half_value_angle53 °

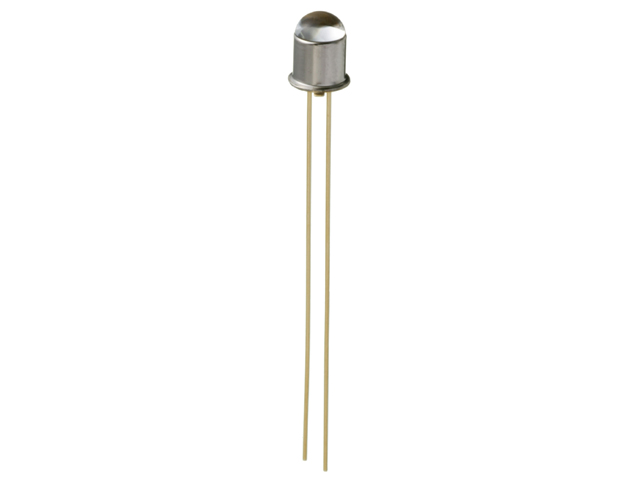

CL-1KL3
pdfはこちら production_status power_dissipation170 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.7 V forward_voltage_if100 mA po_mw7.5 mW po_mw_sr- po_if100 mA peak_wavelength880 nm ±half_value_angle17 °

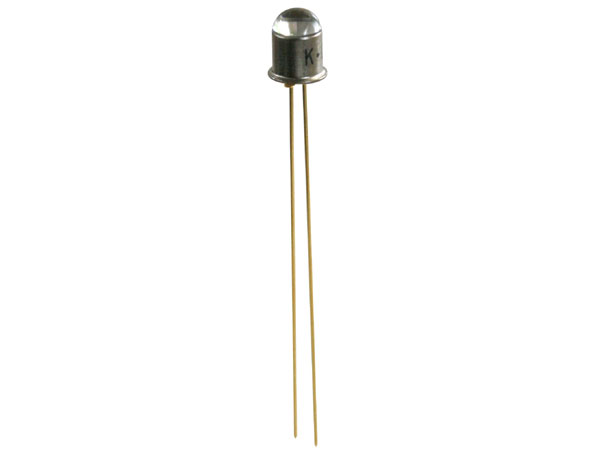

CL-1KL7
pdfはこちら production_status power_dissipation200 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage2 V forward_voltage_if100 mA po_mw8 mW po_mw_sr- po_if100 mA peak_wavelength880 nm ±half_value_angle8 °

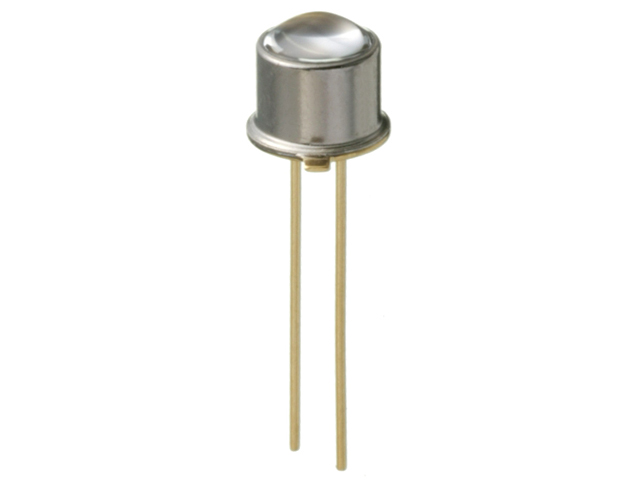

CL-203
pdfはこちら production_status power_dissipation160 mW topr_min-40 ~ +topr_max100 ℃ forward_voltage2 V forward_voltage_if80 mA po_mw5 mW po_mw_sr- po_if50 mA peak_wavelength880 nm ±half_value_angle9 °

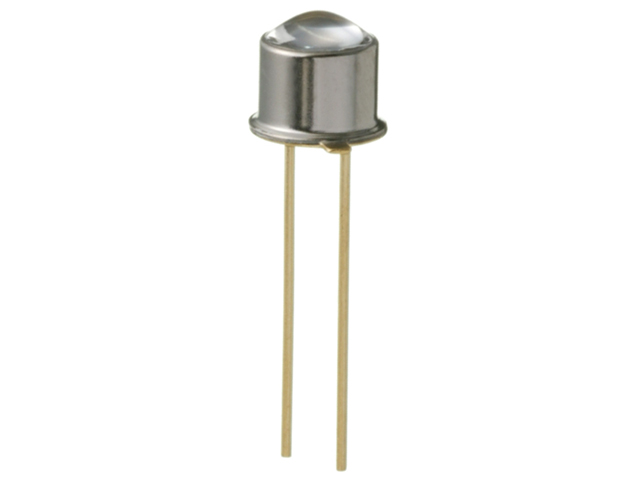

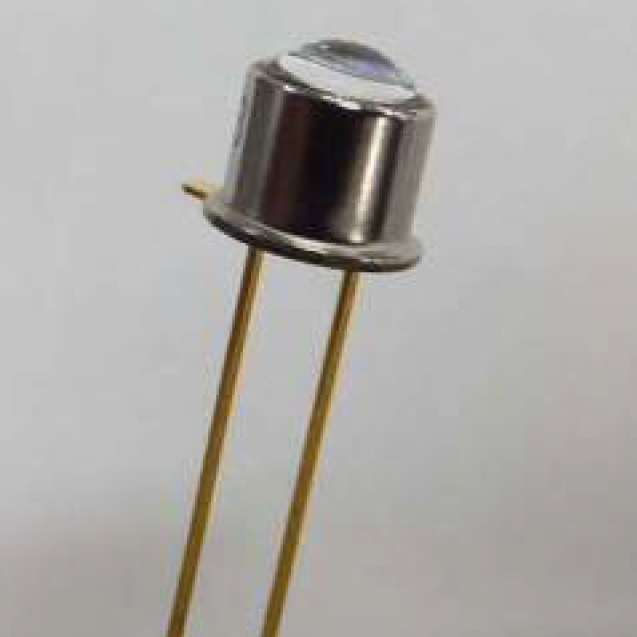

CL-205
pdfはこちら production_status power_dissipation160 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage2 V forward_voltage_if50 mA po_mw10 mW po_mw_sr- po_if50 mA peak_wavelength870 nm ±half_value_angle9 °

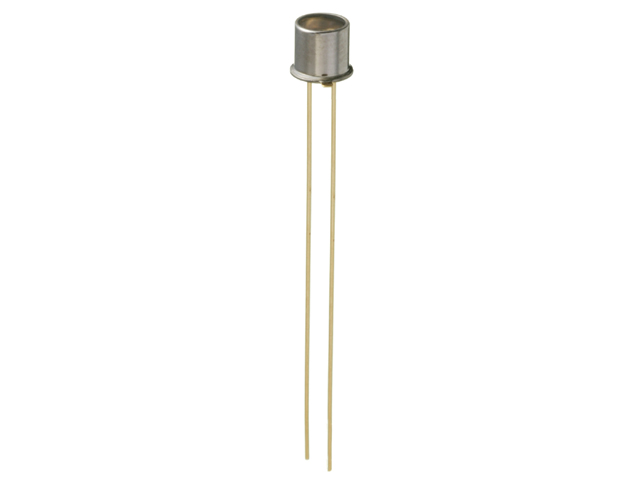

CL-207
pdfはこちら production_status power_dissipation170 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw2 mW po_mw_sr- po_if20 mA peak_wavelength880 nm ±half_value_angle35 °
CL-209
pdfはこちら production_status power_dissipation140 mW topr_min-20 ~ +topr_max80 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw4.5 mW po_mw_sr- po_if20 mA peak_wavelength880 nm ±half_value_angle85 °
CL-211
pdfはこちら production_status power_dissipation85 mW topr_min-30 ~ +topr_max85 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw5 mW po_mw_sr- po_if20 mA peak_wavelength870 nm ±half_value_angle12 °

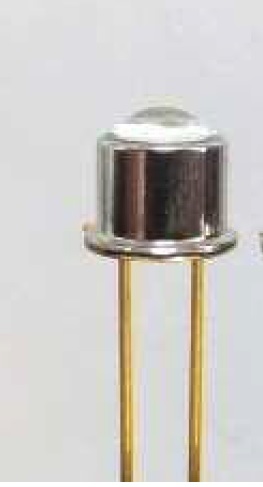

HL221
- production_status power_dissipation150 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.5 V forward_voltage_if50 mA po_mw8.4 mW po_mw_sr- po_if50 mA peak_wavelength850 nm ±half_value_angle-

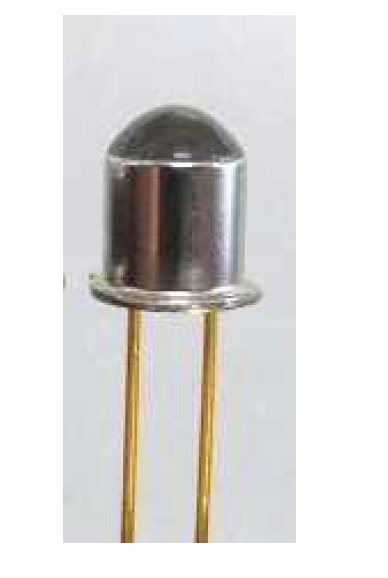

HL222
- production_status power_dissipation140 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw4.4 mW po_mw_sr- po_if20 mA peak_wavelength850 nm ±half_value_angle-

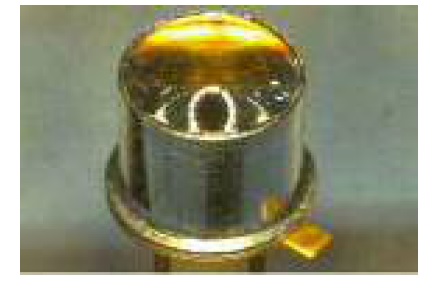

HL226
- production_status power_dissipation160 mW topr_min-30 ~ +topr_max85 ℃ forward_voltage1.45 V forward_voltage_if20 mA po_mw3.7 mW po_mw_sr- po_if20 mA peak_wavelength850 nm ±half_value_angle-
ML-1CL3
pdfはこちら production_status power_dissipation80 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.7 V forward_voltage_if50 mA po_mw8 mW po_mw_sr- po_if20 mA peak_wavelength865 nm ±half_value_angle53 °

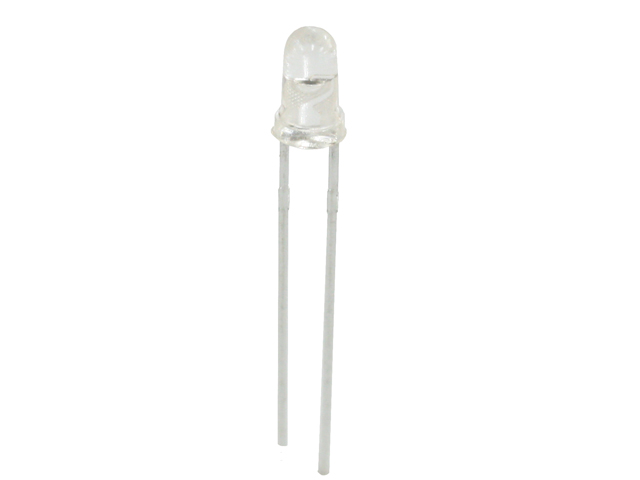

ML341H
pdfはこちら production_status power_dissipation150 mW topr_min-30 ~ +topr_max100 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw3.2 mW po_mw_sr- po_if20 mA peak_wavelength870 nm ±half_value_angle14 °

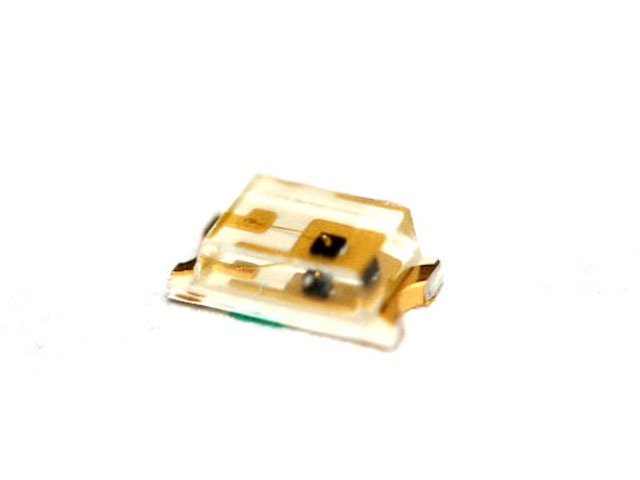

HL601
pdfはこちら production_status power_dissipation85 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.7 V forward_voltage_if20 mA po_mw1.5 mW po_mw_sr- po_if20 mA peak_wavelength850 nm ±half_value_angle75 °
ML615
pdfはこちら production_status power_dissipation70 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw2.8 mW po_mw_sr- po_if20 mA peak_wavelength875 nm ±half_value_angle20 °
HL615
pdfはこちら production_status power_dissipation70 mW topr_min-20 ~ +topr_max70 ℃ forward_voltage1.6 V forward_voltage_if20 mA po_mw2.6 mW po_mw_sr- po_if20 mA peak_wavelength850 nm ±half_value_angle20 °
HL615H
- production_status power_dissipation100 mW topr_min-25 ~ +topr_max70 ℃ forward_voltage1.4 V forward_voltage_if20 mA po_mw6.5 mW po_mw_sr- po_if20 mA peak_wavelength850 nm ±half_value_angle20 °

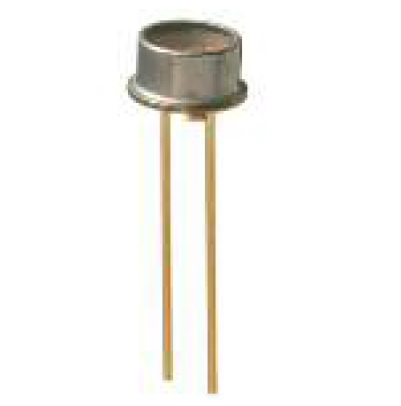

BL15-1101H
pdfはこちら production_status power_dissipation120 mW topr_min-30 ~ +topr_max85 ℃ forward_voltage2.8 V forward_voltage_if20 mA po_mw0.8 mW po_mw_sr- po_if20 mA peak_wavelength650 nm ±half_value_angle60 °

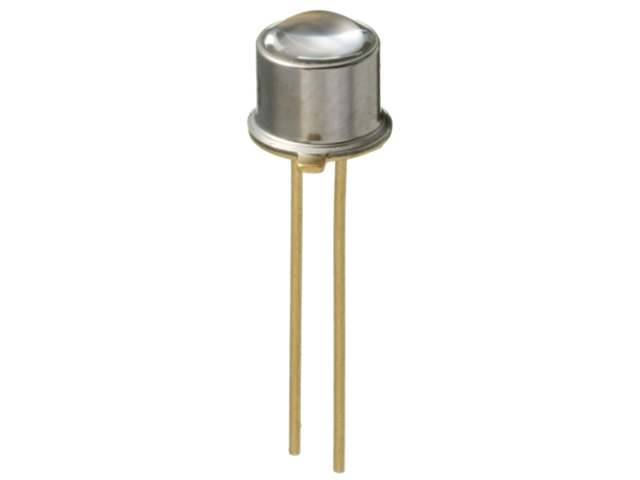

BL15-1212H
pdfはこちら production_status power_dissipation120 mW topr_min-30 ~ +topr_max85 ℃ forward_voltage2.8 V forward_voltage_if20 mA po_mw1 mW po_mw_sr- po_if20 mA peak_wavelength650 nm ±half_value_angle18 °
