PAPER SENSOR鉛フリーRoHS 指令標準

ペーパーセンサ

条件で絞り込む

動作温度
Topr.(Max.)

℃ ~

ローレベル出力電流

mA ~

mA

動作電源電圧 Vcc(Min.)

V  ~

V

動作電源電圧 Vcc(Max.)

V  ~

V

電源電圧 Vcc(Max.)

V ~

V

消費電流 Icc(Typ.)

mA ~

mA

外形サイズ h

mm ~

mm

応答時間 t
PLH/tPHL(Max.)

ms ~

ms

最短検出距離 LDS
Kodak 90%

mm ~

mm

最短検出距離 LDS
OD:0.05

mm ~

mm

最短検出距離 LDS
OD:1.4

mm ~

mm

最短検出距離 LDS
Black

mm ~

mm

最長検出距離 LDL
Kodak 90%

mm ~

mm

最長検出距離 LDL
OD:0.05

mm ~

mm

最長検出距離 LDL
OD:1.4

mm ~

mm

最長検出距離 LDL
Black

mm ~

mm

非検出距離 LNS
Kodak 90%

mm ~

mm

非検出距離 LNS
OD:0.05

mm ~

mm

非検出距離 LNS
Black

mm ~

mm

耐外乱光照度 Ev
(Min.)

lx ~

lx

絞り込み検索

品番 特徴 出力論理 電源電圧 電源電圧 動作温度 動作温度 ローレベル出力電流 動作電源電圧 動作電源電圧 ローレベル出力電圧 ハイレベル出力電圧 消費電流 応答時間 最短検出距離 最短検出距離 最短検出距離 最短検出距離 最長検出距離 最長検出距離 最長検出距離 最長検出距離 非検出距離 非検出距離 非検出距離 耐外乱光照度 外形サイズ 外形サイズ 外形サイズ
Vcc Vcc Topr. Topr. IOL Vcc Vcc VOL VOH Icc tPLH/tPHL LDS LDS LDS LDS LDL LDL LDL LDL LNS LNS LNS Ev x y h
Output logic Kodak 90% OD:0.05 OD:1.4 Black Kodak 90% OD:0.05 OD:1.4 Black Kodak 90% OD:0.05 Black
Min. Max. Min. Max. Min. Max. Max. Min. Typ. Max. Min.
PS117ED1
product_feature小型 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_900.5 mm lds_od005 lds_od140 lds_black1.5 mm lds_kodak_900.5 mm ldl_od005 ldl_od140 ldl_black5.5 mm lns_kodak_9020 mm lns_od005 lns_black10 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.2 mm

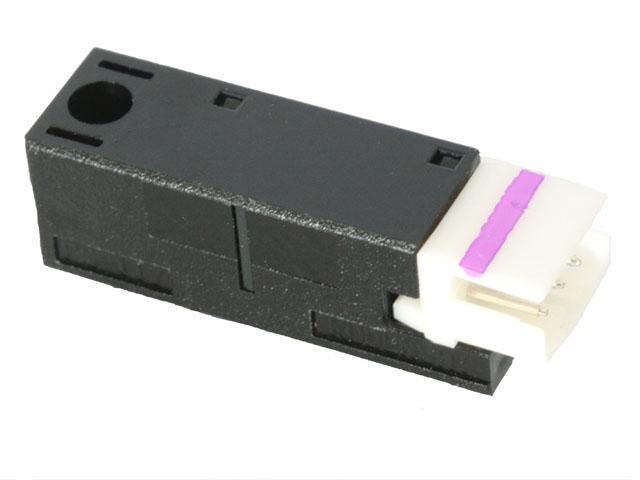

PS117EL1
product_feature小型 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_900.5 mm lds_od005 lds_od140 lds_black1.5 mm lds_kodak_900.5 mm ldl_od005 ldl_od140 ldl_black5.5 mm lns_kodak_9020 mm lns_od005 lns_black10 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.2 mm

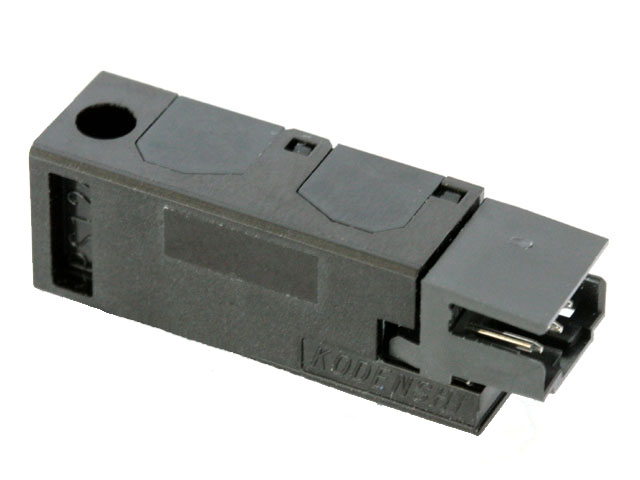

PS124TD1
product_feature小型/高温 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current13 mA response_time0.5 ms lds_kodak_900.5 mm lds_od005 lds_od140 lds_black1.5 mm lds_kodak_900.5 mm ldl_od005 ldl_od140 ldl_black5.5 mm lns_kodak_9020 mm lns_od005 lns_black10 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.2 mm
PS124TL1
product_feature小型/高温 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current13 mA response_time0.5 ms lds_kodak_900.5 mm lds_od005 lds_od140 lds_black1.5 mm lds_kodak_900.5 mm ldl_od005 ldl_od140 ldl_black5.5 mm lns_kodak_9020 mm lns_od005 lns_black10 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.2 mm

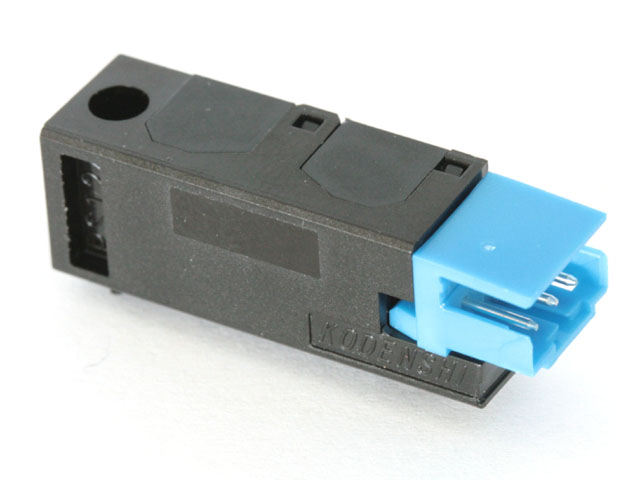

PS124GD1
product_feature小型/低電圧 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min3.05 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_900.5 mm lds_od005 lds_od140 lds_black1.5 mm lds_kodak_900.5 mm ldl_od005 ldl_od140 ldl_black5.5 mm lns_kodak_9020 mm lns_od005 lns_black10 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.2 mm

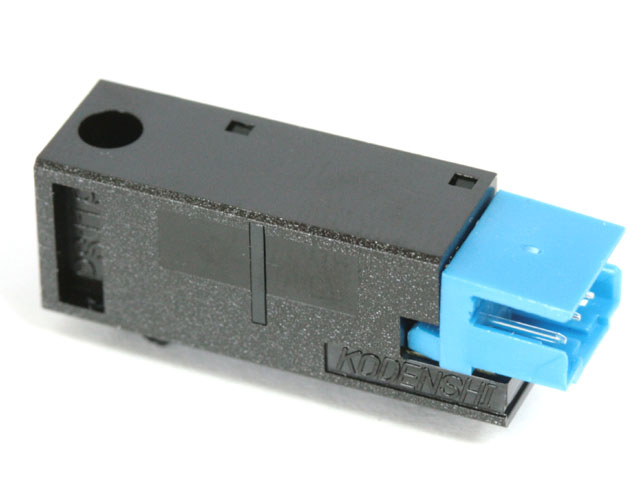

PS119ED1
product_feature小型/長距離 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black12.5 mm lns_kodak_9050 mm lns_od005 lns_black25 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.7 mm
PS119EL1
product_feature小型/長距離 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black12.5 mm lns_kodak_9050 mm lns_od005 lns_black25 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.7 mm

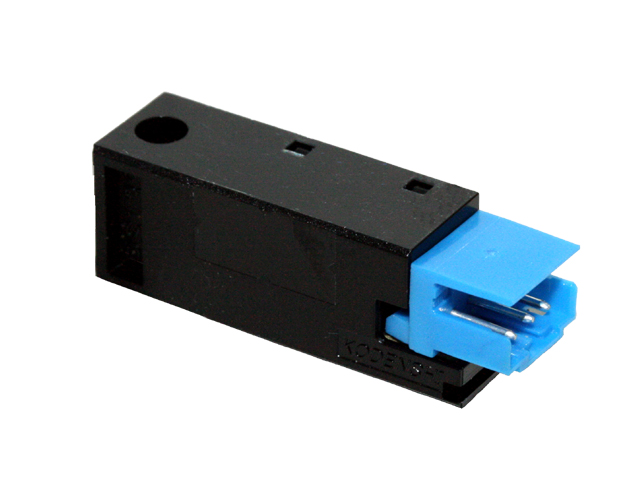

PS133GD1
product_feature小型/長距離/低電圧 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min3.05 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current20 mA response_time0.5 ms lds_kodak_90 lds_od0052 mm lds_od1405 mm lds_black lds_kodak_90 ldl_od00522 mm ldl_od14012.5 mm ldl_black lns_kodak_90 lns_od00550 mm lns_black25 mm scattering_ev3000 lx outer_shape_x*30.4 mm outer_shape_y8 mm outer_shape_h9.7 mm

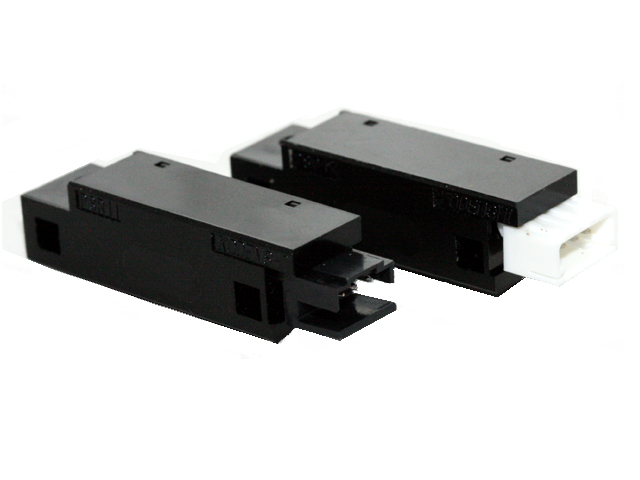

PSR11TD1
product_feature長距離/高温 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current13 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black17.5 mm lns_kodak_9080 mm lns_od005 lns_black35 mm scattering_ev3000 lx outer_shape_x*40 mm outer_shape_y9.6 mm outer_shape_h10 mm
PSR11TL1
product_feature長距離/高温 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current13 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black17.5 mm lns_kodak_9080 mm lns_od005 lns_black35 mm scattering_ev3000 lx outer_shape_x*40 mm outer_shape_y9.6 mm outer_shape_h10 mm
PSR11TD5
product_feature長距離/高温 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current13 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black17.5 mm lns_kodak_9080 mm lns_od005 lns_black35 mm scattering_ev3000 lx outer_shape_x*40 mm outer_shape_y9.6 mm outer_shape_h10 mm

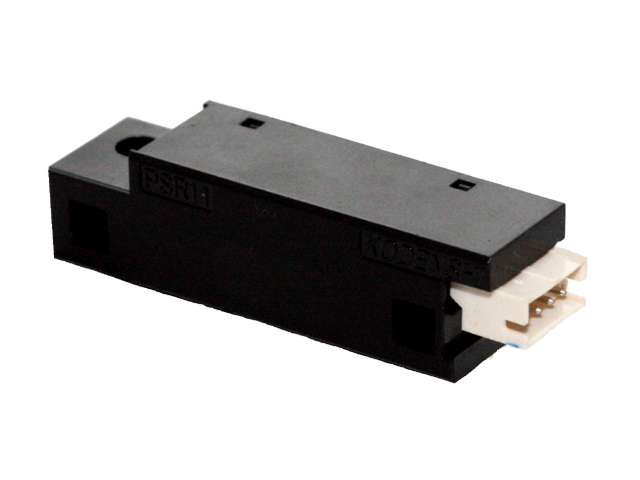

PSR11GD6-F
product_feature長距離 output_logicダークオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4 V consumption_current20 mA response_time0.5 ms lds_kodak_902 mm lds_od005 lds_od140 lds_black5 mm lds_kodak_902 mm ldl_od005 ldl_od140 ldl_black20 mm lns_kodak_90 lns_od005 lns_black scattering_ev3000 lx outer_shape_x*38.2 mm outer_shape_y9.6 mm outer_shape_h10 mm

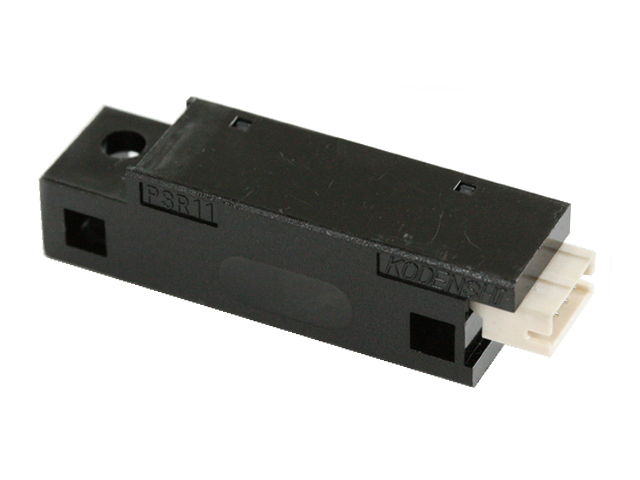

PSR11EL6-D
product_feature長距離/高温/低電圧 output_logicライトオン source_voltage_min-0.5 V source_voltage_max4 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min3.05 V action_source_voltage_max3.6 V vol_max0.4 V voh_min2.8 V consumption_current response_time0.5 ms lds_kodak_90 lds_od0052 mm lds_od1405 mm lds_black lds_kodak_90 ldl_od00545 mm ldl_od14018 mm ldl_black lns_kodak_90 lns_od005 lns_black scattering_ev3000 lx outer_shape_x*38.2 mm outer_shape_y9.6 mm outer_shape_h10 mm
PS122TL8-A
product_feature小型/高温 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current12 mA response_time0.5 ms lds_kodak_90 lds_od0051 mm lds_od1403 mm lds_black lds_kodak_90 ldl_od00510 mm ldl_od1407 mm ldl_black lns_kodak_90 lns_od00527 mm lns_black12 mm scattering_ev3000 lx outer_shape_x*21.3 mm outer_shape_y9.3 mm outer_shape_h11.3 mm

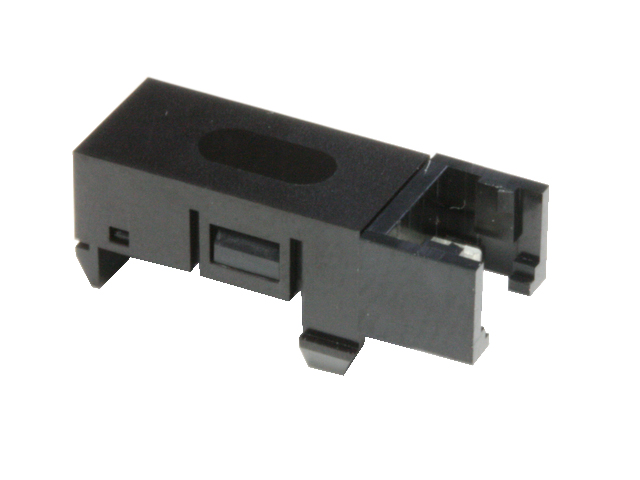

PS122GD4-A
product_feature小型/高温/低電圧 output_logicダークオン source_voltage_min-0.5 V source_voltage_max4 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min3.05 V action_source_voltage_max3.6 V vol_max0.4 V voh_min2.7 V consumption_current20 mA response_time0.5 ms lds_kodak_90 lds_od0051 mm lds_od1403 mm lds_black lds_kodak_90 ldl_od00510 mm ldl_od1407 mm ldl_black lns_kodak_90 lns_od00527 mm lns_black12 mm scattering_ev3000 lx outer_shape_x*20 mm outer_shape_y8 mm outer_shape_h8 mm
PS122TL4-A
product_feature小型/高温 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max85 ℃ iol30 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current12 mA response_time0.5 ms lds_kodak_90 lds_od0051 mm lds_od1403 mm lds_black lds_kodak_90 ldl_od00510 mm ldl_od1407 mm ldl_black lns_kodak_90 lns_od00527 mm lns_black12 mm scattering_ev3000 lx outer_shape_x*20 mm outer_shape_y8 mm outer_shape_h8 mm
PS135GL1
product_feature低背/中距離/低電圧 output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max60 ℃ iol50 mA action_source_voltage_min3.05 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current response_time0.7 ms lds_kodak_90 lds_od0052 mm lds_od1403 mm lds_black lds_kodak_90 ldl_od00522 mm ldl_od14015 mm ldl_black lns_kodak_90 lns_od00570 mm lns_black scattering_ev3000 lx outer_shape_x*40 mm outer_shape_y9 mm outer_shape_h8 mm

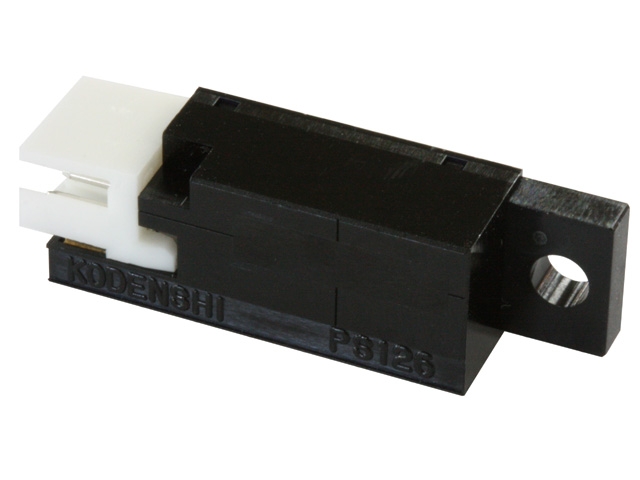

PS126EL1
product_feature小型/耐外乱光(インバータ蛍光灯) output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max70 ℃ iol50 mA action_source_voltage_min4.75 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4 V consumption_current10 mA response_time0.7 ms lds_kodak_90 lds_od0051.5 mm lds_od1402.5 mm lds_black lds_kodak_90 ldl_od00522 mm ldl_od14012.5 mm ldl_black lns_kodak_90 lns_od005100 mm lns_black scattering_ev5000 lx outer_shape_x*31.45 mm outer_shape_y9.5 mm outer_shape_h8 mm
PS126GL1
product_feature小型/耐外乱光(インバータ蛍光灯) output_logicライトオン source_voltage_min-0.5 V source_voltage_max5.5 V topr_min-10 ℃ topr_max70 ℃ iol50 mA action_source_voltage_min3.05 V action_source_voltage_max5.25 V vol_max0.4 V voh_min4.5 V consumption_current10 mA response_time0.7 ms lds_kodak_90 lds_od0051.5 mm lds_od1402.5 mm lds_black lds_kodak_90 ldl_od00522 mm ldl_od14012.5 mm ldl_black lns_kodak_90 lns_od005100 mm lns_black scattering_ev5000 lx outer_shape_x*31.45 mm outer_shape_y9.5 mm outer_shape_h8 mm
