WHITE LED鉛フリーRoHS 指令標準

白色LED

条件で絞り込む

逆電圧 VR

V  ~

V

順電流 IF

mA  ~

mA

許容損失 PD

mW ~

mW

半田付温度 Tsol.

℃ ~

順電圧 VF(Typ.)

V   ~

V

光度 IV(Typ.)

cd  ~

cd

光束 φV(Typ.)

lm  ~

lm

平均演色性評価数 Ra(Min.)

 ~

指向角 2θ1/2

°  ~

°

順電流条件

mA ~

mA

絞り込み検索

品番 データシート 特長 量産状態
〇:量産中
△:要問合せ
発光色 チップ数 外形サイズ 逆電圧 順電流 許容損失 動作温度 保存温度 半田付温度 順電圧 色度 光度 光束 平均演色性評価数 指向角 順電流条件
x,y,t VR IF PD Topr. Tstg. Tsol. VF x,y IV φV Ra 2θ1/2
Typ. Typ. Typ. Min.
LW801-1**2780
pdfはこちら product_feature高輝度/高演色 production_status colorWarm White chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.458 / chromaticity_y0.41 light_intensity_typ3.9 cd luminous_flux*10.9 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**3080
pdfはこちら product_feature高輝度/高演色 production_status colorWarm White chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.435 / chromaticity_y0.405 light_intensity_typ4 cd luminous_flux*11.1 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**4080
pdfはこちら product_feature高輝度/高演色 production_status colorWarm White chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.385 / chromaticity_y0.38 light_intensity_typ4.2 cd luminous_flux*11.7 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**5080
pdfはこちら product_feature高輝度/高演色 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.345 / chromaticity_y0.355 light_intensity_typ4.2 cd luminous_flux*11.8 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**5780
pdfはこちら product_feature高輝度 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ4.2 cd luminous_flux*11.8 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**6580
pdfはこちら product_feature高輝度/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.313 / chromaticity_y0.325 light_intensity_typ4.2 cd luminous_flux*11.8 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition35 mA
LW801-1**5770D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ5.1 cd luminous_flux*14.3 lm color_rendering_properties_index70 directivity_angle120 ° forward_current_condition35 mA

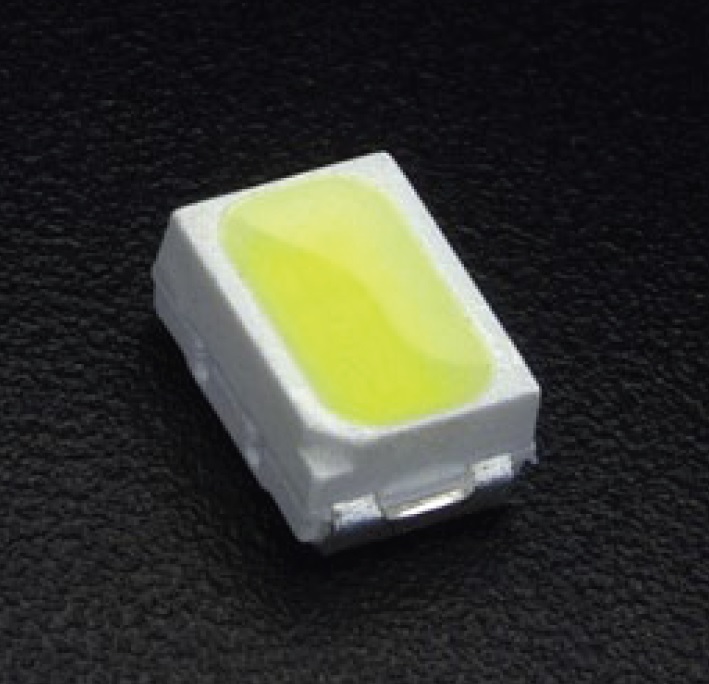

LW815-014D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ2.8 cd luminous_flux*7.5 lm color_rendering_properties_index- directivity_angle115 ° forward_current_condition20 mA
LW815-1BB2780D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.458 / chromaticity_y0.41 light_intensity_typ2.2 cd luminous_flux*5.9 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW815-1BB3080D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.435 / chromaticity_y0.405 light_intensity_typ2.3 cd luminous_flux*6.1 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW815-1BB4080D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.385 / chromaticity_y0.38 light_intensity_typ2.5 cd luminous_flux*6.7 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW815-1BB5080D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.345 / chromaticity_y0.355 light_intensity_typ2.5 cd luminous_flux*6.7 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW815-1BB5780D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ2.5 cd luminous_flux*6.7 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW815-1BB6580D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y2 * outer_shape_t1.3 mm reverse_voltage- forward_current30 mA power_dissipation108 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.2 V chromaticity_x0.313 / chromaticity_y0.325 light_intensity_typ2.4 cd luminous_flux*6.4 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB2780
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.458 / chromaticity_y0.41 light_intensity_typ2.1 cd luminous_flux*5.6 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB3080
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.435 / chromaticity_y0.405 light_intensity_typ2.2 cd luminous_flux*5.9 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB4080
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWarm White chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.385 / chromaticity_y0.38 light_intensity_typ2.4 cd luminous_flux*6.4 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB5080
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.345 / chromaticity_y0.355 light_intensity_typ2.4 cd luminous_flux*6.4 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB5780
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ2.4 cd luminous_flux*6.4 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA
LW821-1AB6580
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3 * outer_shape_y1.4 * outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation102 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ2.9 V chromaticity_x0.313 / chromaticity_y0.325 light_intensity_typ2.3 cd luminous_flux*6.1 lm color_rendering_properties_index80 directivity_angle115 ° forward_current_condition20 mA

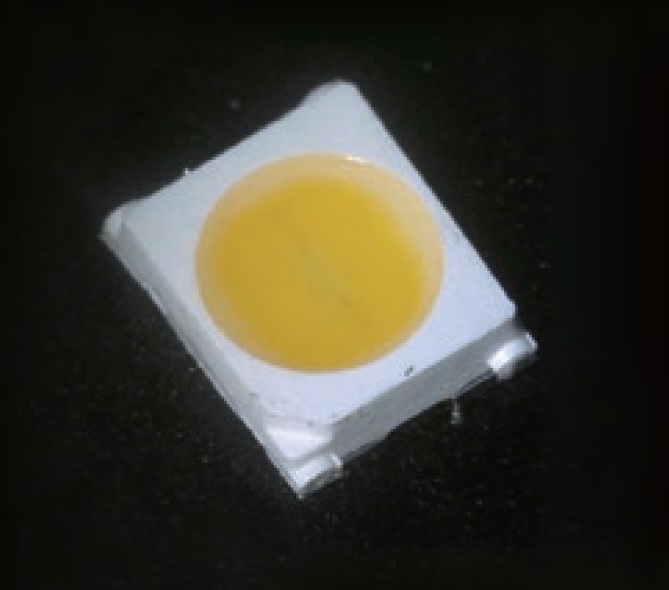

LW831-1BG6580D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.314 / chromaticity_y0.326 light_intensity_typ9.2 cd luminous_flux28 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition60 mA
LW831-1BG5780D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.33 / chromaticity_y0.34 light_intensity_typ9.4 cd luminous_flux28.6 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition60 mA
LW831-1BG5080D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.345 / chromaticity_y0.356 light_intensity_typ9.4 cd luminous_flux28.6 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition60 mA
LW831-1BG5090D
pdfはこちら product_feature高輝度/高演色/小型/薄型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.345 / chromaticity_y0.356 light_intensity_typ8 cd luminous_flux24.3 lm color_rendering_properties_index90 directivity_angle120 ° forward_current_condition60 mA
LW831-1BG4280D
pdfはこちら product_feature小型/狭指向角/高性能レンズタイプ production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.371 / chromaticity_y0.373 light_intensity_typ9.4 cd luminous_flux28.6 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition60 mA
LW831-1BG3080D
pdfはこちら product_feature高輝度/小型 production_status colorWhite chip_count1in1 outer_shape_x3.5 * outer_shape_y2.8 * outer_shape_t0.7 mm reverse_voltage- forward_current120 mA power_dissipation430 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3 V chromaticity_x0.435 / chromaticity_y0.403 light_intensity_typ8.9 cd luminous_flux25.8 lm color_rendering_properties_index80 directivity_angle120 ° forward_current_condition60 mA
LW616-002
pdfはこちら product_feature高輝度/小型 production_status colorWhite chip_count1in1 outer_shape_x4.7 * outer_shape_y4.6 * outer_shape_t5.1 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.1 V chromaticity_x0.31 / chromaticity_y0.31 light_intensity_typ18 cd luminous_flux*- lm color_rendering_properties_index- directivity_angle24 ° forward_current_condition20 mA

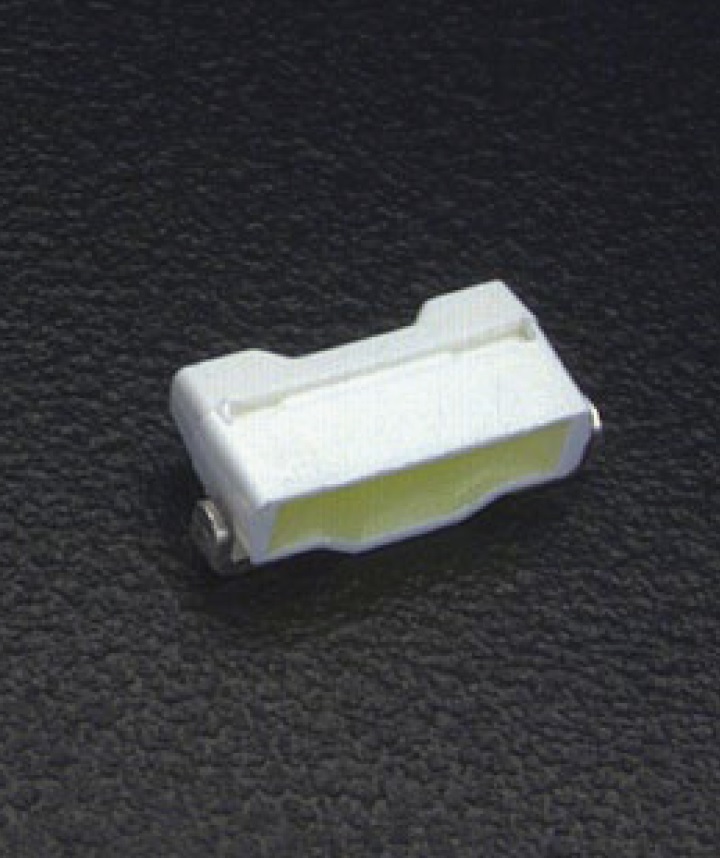

LW812-005A
pdfはこちら product_feature高輝度/小型/特殊照明 production_status colorWhite chip_count1in1 outer_shape_x2.8 * outer_shape_y1.2 * outer_shape_t0.8 mm reverse_voltage5 V forward_current30 mA power_dissipation115 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.1 V chromaticity_x0.3 / chromaticity_y0.29 light_intensity_typ2.2 cd luminous_flux*6.3 lm color_rendering_properties_index- directivity_angle115 ° forward_current_condition20 mA
LW812-1**2700
pdfはこちら product_feature高輝度/小型 production_status colorWarm White chip_count1in1 outer_shape_x2.8 * outer_shape_y1.2 * outer_shape_t0.8 mm reverse_voltage5 V forward_current30 mA power_dissipation105 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ3.1 V chromaticity_x0.41 / chromaticity_y0.39 light_intensity_typ1.8 cd luminous_flux*5.2 lm color_rendering_properties_index- directivity_angle115 ° forward_current_condition20 mA

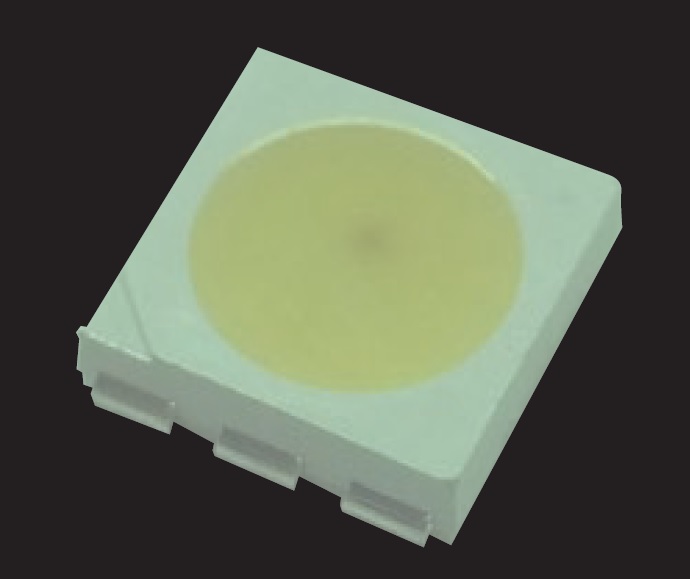

LD806-004
pdfはこちら product_feature高輝度/小型/特殊照明 production_status colorWhite chip_count2in1 outer_shape_x5.4 * outer_shape_y5 * outer_shape_t1.6 mm reverse_voltage10 V forward_current80 mA power_dissipation440 mW topr_min-30 ~ +topr_max85 ℃ tstg_min-40 ~ +tstg_max100 ℃ tsol260 ℃ forward_voltage_typ5.2 V chromaticity_x0.387 / chromaticity_y0.331 light_intensity_typ5.1 cd luminous_flux- color_rendering_properties_index- directivity_angle120 ° forward_current_condition40 mA
