SINGLE COLOR LED鉛フリーRoHS 指令標準

単色LED

条件で絞り込む

発光色
外形サイズ x

mm ~

mm

外形サイズ y

mm ~

mm

外形サイズ t

mm ~

mm

順電流 IF

mA ~

mA

動作温度
Topr.(Min.)

℃ ~

順電圧 VF(Typ.)

V  ~

V

順電圧 VF(Min.)

V  ~

V

順電圧 VF(Max.)

V  ~

V

ドミナント波長 λd(Min.)

nm ~

nm

ドミナント波長 λd(Max.)

nm ~

nm

光度 IV(Min.)

nm ~

nm

光度 IV(Max.)

cd ~

cd

光度
指向角 2θ1/2

°  ~

°

順電流条件

mA ~

mA

絞り込み検索

品番 特徴 発光色 チップ数 外形サイズ 外形サイズ 外形サイズ 逆電圧 順電流 許容損失 動作温度 動作温度 保存温度 保存温度 半田付温度 順電圧 順電圧 順電圧 ドミナント波長 ドミナント波長 ドミナント波長 光度 光度 光度 指向角 順電流条件
x y t VR IF PD Topr. Topr. Tstg. Tstg. Tsol. VF VF VF λd λd λd IV IV IV 2θ1/2
Min. Max. Min. Max. Min. Typ. Max. Min. Typ. Max. Min. Typ. Max.

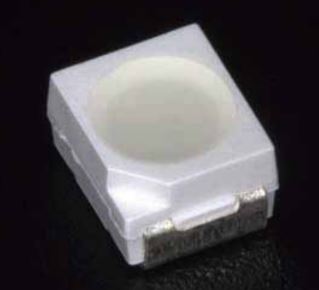

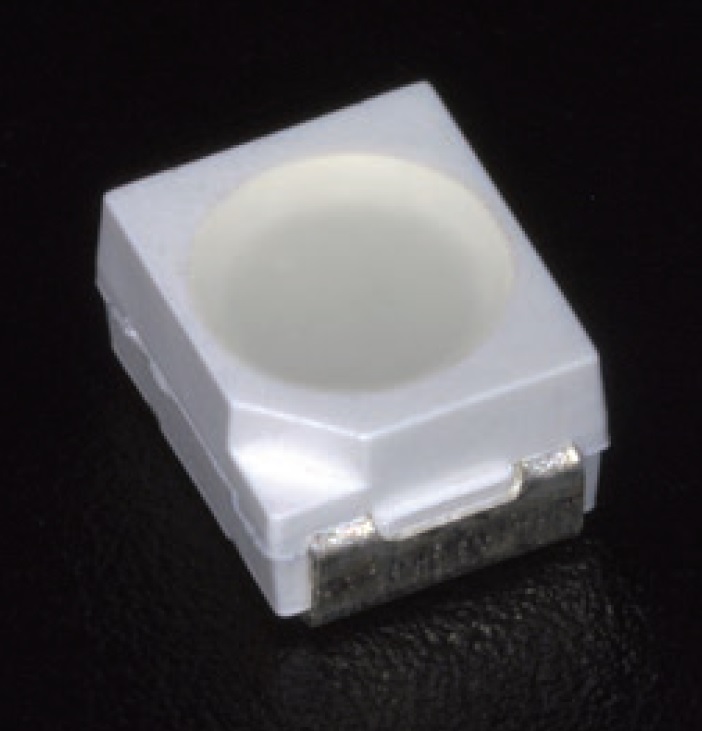

LX801-013A
product_feature高輝度/小型/表面実装 colorRed chip_count1in1 outer_shape_x3.5 mm outer_shape_y2.8 mm outer_shape_t1.9 mm reverse_voltage5 V forward_current50 mA power_dissipation140 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min1.6 V forward_voltage_typ forward_voltage_max2.5 V dominant_wavelength_min618 nm dominant_wavelength_typ dominant_wavelength_max632 nm light_intensity_min0.71 cd light_intensity_typ*1.1 cd light_intensity_max directivity_angle120 ° forward_current_condition20 mA
LY801-002D
product_feature高輝度/小型/表面実装 colorGreen chip_count1in1 outer_shape_x3.5 mm outer_shape_y2.8 mm outer_shape_t1.9 mm reverse_voltage forward_current30 mA power_dissipation111 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ forward_voltage_max3.7 V dominant_wavelength_min525 nm dominant_wavelength_typ dominant_wavelength_max535 nm light_intensity_min0.78 cd light_intensity_typ*1.8 cd light_intensity_max directivity_angle120 ° forward_current_condition20 mA
LY801-003D
product_feature高輝度/小型/表面実装 colorGreen chip_count1in1 outer_shape_x3.5 mm outer_shape_y2.8 mm outer_shape_t1.9 mm reverse_voltage forward_current50 mA power_dissipation185 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ forward_voltage_max3.7 V dominant_wavelength_min518 nm dominant_wavelength_typ dominant_wavelength_max532 nm light_intensity_min1.45 cd light_intensity_typ*2.2 cd light_intensity_max directivity_angle120 ° forward_current_condition20 mA
LZ801-006D
product_feature高輝度/小型/表面実装 colorBlue chip_count1in1 outer_shape_x3.5 mm outer_shape_y2.8 mm outer_shape_t1.9 mm reverse_voltage forward_current30 mA power_dissipation105 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ forward_voltage_max3.5 V dominant_wavelength_min465 nm dominant_wavelength_typ dominant_wavelength_max475 nm light_intensity_min0.35 cd light_intensity_typ*0.65 cd light_intensity_max directivity_angle120 ° forward_current_condition20 mA
LX815-003
product_feature高輝度/小型/薄型/表面実装 colorRed chip_count1in1 outer_shape_x3 mm outer_shape_y2 mm outer_shape_t1.3 mm reverse_voltage5 V forward_current50 mA power_dissipation125 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2 V forward_voltage_typ2.2 V forward_voltage_max2.5 V dominant_wavelength_min620 nm dominant_wavelength_typ625 nm dominant_wavelength_max630 nm light_intensity_min0.4 cd light_intensity_typ*0.7 cd light_intensity_max directivity_angle115 ° forward_current_condition20 mA
LY815-003D
product_feature高輝度/小型/薄型/表面実装 colorGreen chip_count1in1 outer_shape_x3 mm outer_shape_y2 mm outer_shape_t1.3 mm reverse_voltage forward_current30 mA power_dissipation105 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ3.2 V forward_voltage_max3.6 V dominant_wavelength_min518 nm dominant_wavelength_typ dominant_wavelength_max532 nm light_intensity_min1 cd light_intensity_typ*1.5 cd light_intensity_max2.5 cd directivity_angle115 ° forward_current_condition20 mA
LZ815-004D
product_feature高輝度/小型/薄型/表面実装 colorBlue chip_count1in1 outer_shape_x3 mm outer_shape_y2 mm outer_shape_t1.3 mm reverse_voltage forward_current30 mA power_dissipation105 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ3.2 V forward_voltage_max3.7 V dominant_wavelength_min464 nm dominant_wavelength_typ470 nm dominant_wavelength_max476 nm light_intensity_min light_intensity_typ*0.4 cd light_intensity_max directivity_angle115 ° forward_current_condition20 mA
LX821-001
product_feature高輝度/小型/薄型/表面実装 colorRed chip_count1in1 outer_shape_x3 mm outer_shape_y1.4 mm outer_shape_t1.2 mm reverse_voltage5 V forward_current30 mA power_dissipation78 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min1.7 V forward_voltage_typ2.2 V forward_voltage_max2.6 V dominant_wavelength_min618 nm dominant_wavelength_typ dominant_wavelength_max632 nm light_intensity_min light_intensity_typ*0.78 cd light_intensity_max directivity_angle115 ° forward_current_condition20 mA
LY821-002D
product_feature高輝度/小型/薄型/表面実装 colorGreen chip_count1in1 outer_shape_x3 mm outer_shape_y1.4 mm outer_shape_t1.2 mm reverse_voltage forward_current30 mA power_dissipation105 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ3.2 V forward_voltage_max3.6 V dominant_wavelength_min518 nm dominant_wavelength_typ dominant_wavelength_max532 nm light_intensity_min light_intensity_typ*1.5 cd light_intensity_max directivity_angle115 ° forward_current_condition20 mA
LZ821-002D
product_feature高輝度/小型/薄型/表面実装 colorBlue chip_count1in1 outer_shape_x3 mm outer_shape_y1.4 mm outer_shape_t1.2 mm reverse_voltage forward_current30 mA power_dissipation105 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ3.2 V forward_voltage_max3.6 V dominant_wavelength_min458 nm dominant_wavelength_typ dominant_wavelength_max472 nm light_intensity_min light_intensity_typ*0.47 cd light_intensity_max directivity_angle115 ° forward_current_condition20 mA

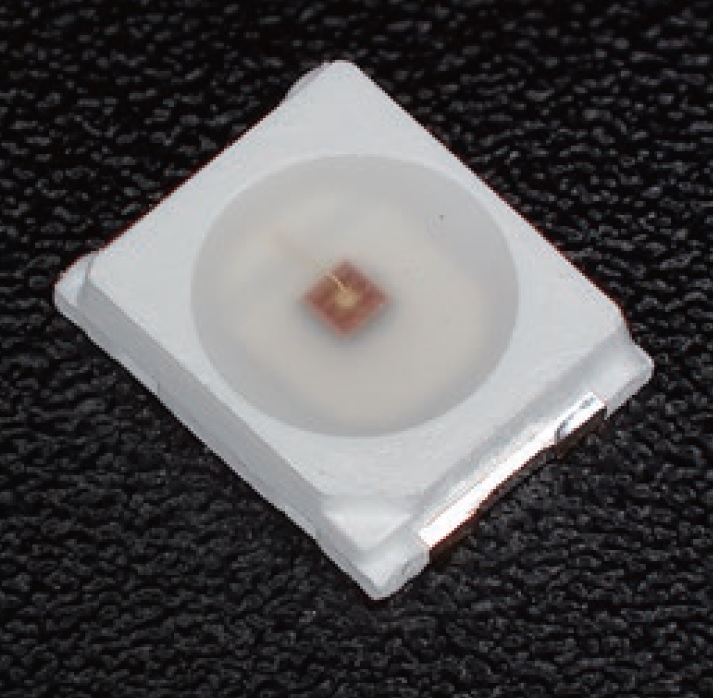

LX831-006A
product_feature高輝度/小型/薄型/表面実装 colorRed chip_count1in1 outer_shape_x3.5 mm outer_shape_y2.8 mm outer_shape_t0.7 mm reverse_voltage5 V forward_current120 mA power_dissipation336 mW topr_min-30 ℃ topr_max85 ℃ tstg_min-40 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min1.7 V forward_voltage_typ2.3 V forward_voltage_max2.8 V dominant_wavelength_min618 nm dominant_wavelength_typ622 nm dominant_wavelength_max632 nm light_intensity_min3 cd light_intensity_typ*4.3 cd light_intensity_max5.8 cd directivity_angle120 ° forward_current_condition100 mA
LX616-004
product_feature狭指向角/小型/表面実装/高性能レンズタイプ colorRed chip_count1in1 outer_shape_x4.7 mm outer_shape_y4.6 mm outer_shape_t5.1 mm reverse_voltage5 V forward_current50 mA power_dissipation125 mW topr_min-30 ℃ topr_max85 ℃ tstg_min-40 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min forward_voltage_typ2.1 V forward_voltage_max2.5 V dominant_wavelength_min615 nm dominant_wavelength_typ622 nm dominant_wavelength_max630 nm light_intensity_min18 cd light_intensity_typ*32 cd light_intensity_max directivity_angle10 ° forward_current_condition20 mA
LY616-002
product_feature狭指向角/小型/表面実装/高性能レンズタイプ colorGreen chip_count1in1 outer_shape_x4.7 mm outer_shape_y4.6 mm outer_shape_t5.1 mm reverse_voltage5 V forward_current50 mA power_dissipation175 mW topr_min-30 ℃ topr_max85 ℃ tstg_min-40 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min forward_voltage_typ3.1 V forward_voltage_max3.5 V dominant_wavelength_min515 nm dominant_wavelength_typ525 nm dominant_wavelength_max535 nm light_intensity_min20 cd light_intensity_typ*32 cd light_intensity_max directivity_angle10 ° forward_current_condition20 mA
LZ616-002
product_feature狭指向角/小型/表面実装/高性能レンズタイプ colorBlue chip_count1in1 outer_shape_x4.7 mm outer_shape_y4.6 mm outer_shape_t5.1 mm reverse_voltage5 V forward_current30 mA power_dissipation108 mW topr_min-30 ℃ topr_max85 ℃ tstg_min-40 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min forward_voltage_typ3.1 V forward_voltage_max3.5 V dominant_wavelength_min460 nm dominant_wavelength_typ467 nm dominant_wavelength_max475 nm light_intensity_min5 cd light_intensity_typ*10 cd light_intensity_max directivity_angle10 ° forward_current_condition20 mA
KLB-16G
product_feature高輝度/超小型/表面実装 colorGreen chip_count1in1 outer_shape_x1.6 mm outer_shape_y0.8 mm outer_shape_t0.4 mm reverse_voltage5 V forward_current20 mA power_dissipation68 mW topr_min-20 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.6 V forward_voltage_typ3 V forward_voltage_max3.4 V dominant_wavelength_min525 nm dominant_wavelength_typ530 nm dominant_wavelength_max535 nm light_intensity_min0.2 cd light_intensity_typ*0.35 cd light_intensity_max0.5 cd directivity_angle160 ° forward_current_condition10 mA
KLB-16B
product_feature高輝度/超小型/表面実装 colorBlue chip_count1in1 outer_shape_x1.6 mm outer_shape_y0.8 mm outer_shape_t0.4 mm reverse_voltage5 V forward_current20 mA power_dissipation68 mW topr_min-20 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ3 V forward_voltage_max3.3 V dominant_wavelength_min465 nm dominant_wavelength_typ473 nm dominant_wavelength_max478 nm light_intensity_min0.04 cd light_intensity_typ*0.07 cd light_intensity_max0.13 cd directivity_angle160 ° forward_current_condition10 mA
KB1608R64A15
product_feature高輝度/超小型/表面実装 colorRed chip_count1in1 outer_shape_x1.6 mm outer_shape_y0.8 mm outer_shape_t0.55 mm reverse_voltage5 V forward_current30 mA power_dissipation72 mW topr_min-20 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min1.8 V forward_voltage_typ2 V forward_voltage_max2.2 V dominant_wavelength_min633 nm dominant_wavelength_typ638 nm dominant_wavelength_max644 nm light_intensity_min0.02 cd light_intensity_typ*0.04 cd light_intensity_max0.06 cd directivity_angle160 ° forward_current_condition10 mA
SCPG3317E-H
product_feature高輝度/3φレンズタイプ colorGreen chip_count1in1 outer_shape_x3 mm outer_shape_y3 mm outer_shape_t reverse_voltage5 V forward_current30 mA power_dissipation114 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ3.2 V forward_voltage_max3.8 V dominant_wavelength_min520 nm dominant_wavelength_typ525 nm dominant_wavelength_max530 nm light_intensity_min5.9 cd light_intensity_typ*12 cd light_intensity_max20 cd directivity_angle44 ° forward_current_condition20 mA
SCB3317E-H
product_feature高輝度/3φレンズタイプ colorBlue chip_count1in1 outer_shape_x3 mm outer_shape_y3 mm outer_shape_t reverse_voltage5 V forward_current30 mA power_dissipation114 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ3.2 V forward_voltage_max3.8 V dominant_wavelength_min465 nm dominant_wavelength_typ472 nm dominant_wavelength_max478 nm light_intensity_min2.6 cd light_intensity_typ*5 cd light_intensity_max8.9 cd directivity_angle44 ° forward_current_condition20 mA
SCPG3318E-H
product_feature高輝度/3φ高指向角レンズタイプ colorGreen chip_count1in1 outer_shape_x3 mm outer_shape_y3 mm outer_shape_t reverse_voltage5 V forward_current30 mA power_dissipation114 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.8 V forward_voltage_typ3.2 V forward_voltage_max3.8 V dominant_wavelength_min520 nm dominant_wavelength_typ525 nm dominant_wavelength_max530 nm light_intensity_min1.8 cd light_intensity_typ*3 cd light_intensity_max5.9 cd directivity_angle90 ° forward_current_condition20 mA
SCB3318E-D2
product_feature高輝度/3φ高指向角レンズタイプ colorBlue chip_count1in1 outer_shape_x3 mm outer_shape_y3 mm outer_shape_t reverse_voltage5 V forward_current30 mA power_dissipation114 mW topr_min-25 ℃ topr_max85 ℃ tstg_min-30 ℃ tstg_max100 ℃ tsol260 ℃ forward_voltage_min2.7 V forward_voltage_typ3.2 V forward_voltage_max3.8 V dominant_wavelength_min465 nm dominant_wavelength_typ472 nm dominant_wavelength_max478 nm light_intensity_min0.4 cd light_intensity_typ*0.6 cd light_intensity_max0.8 cd directivity_angle90 ° forward_current_condition20 mA
